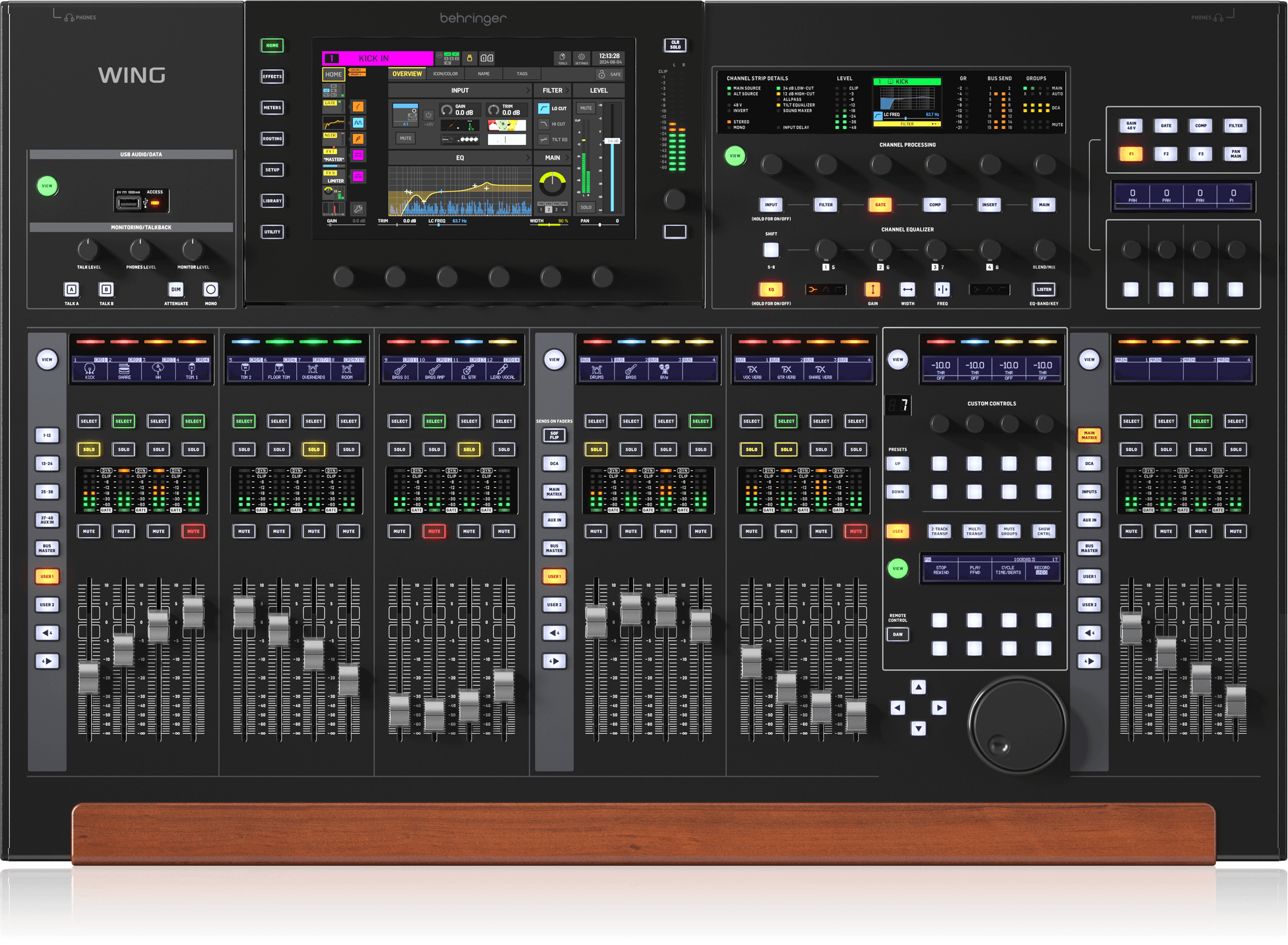

48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 24 Fader Control Surface.
- 8 Midas PRO mic preamps and outputs provide industry-reference sound quality
- 24 motorized 100 mm faders in 3 separate, fully configurable sections
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- Custom Controls offering 16 configurable buttons, 4 rotary controls and one large control wheel for smooth, personalized workflow
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 4 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- Touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for unique channel identification
